IRIS

Tilt

Sealed. Tiltable. Powerful. Versatile.

Features at a glance
- New Zealand's highest thermal safety compliance IC-F/IC-4
- Available in premium 90+ CRI, Sleep LED™ and Studio LED™ Versions
- 4 Beam angle options available 20° , 40°, 60° and wide beam
- Fully IP65 rating and sealed design - even when tilted
- Designed & built in Canterbury, New Zealand
- 10 Year lamp & driver warranty4
- Ultra-long lifespan lighting engine exceeding 60,000 hours3

Ø 103mm | ↔ 83-97mm | ϟ 9W

INSPIRED BY NATURE

Iris Tilt provides great capability with its  sealed ball and socket design that while tilted, ensures no air loss into the ceiling cavity. Iris Tilt is also extremely adaptable to a wide array of applications - boasting over 60 different build variations.

LOW GLARE ULTRA

Through optical and technological refinements, Iris Tilt has an extremely low glare rating which does not exceed UGR 14.41 on any of its variations. Any light fitting under UGR 19 is classed as low glare. You'll experience smooth crisp light without causing added stress on your eyes.

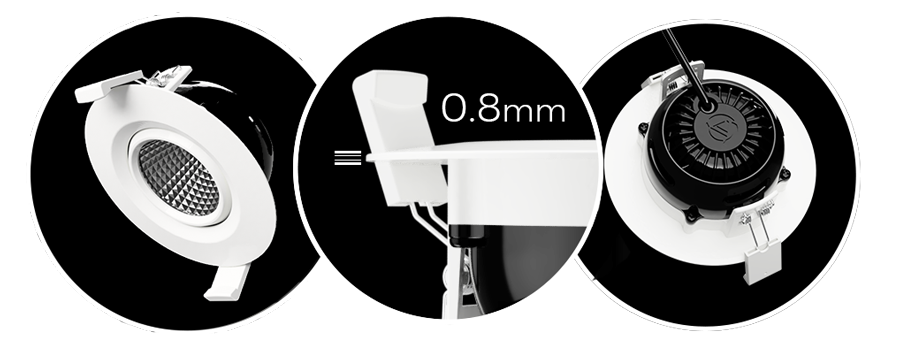

DESIGN

Iris Tilt was engineered through a synergy of styling from our flagship 'Eve Series' luminaires and by mother nature itself. The human eye provides key bio-mechanical inspiration to the design - ensuring that the light source could emit on any rotational axis, all while maintaining a sealed building envelope while tilted. Iris tilt features our thinnest razor edge trim design yet, with a trim edge measuring a tiny 0.8mm for beautiful and minimalist aesthetics.

LIGHT COLOUR OPTIONS

3000K

4000K

5000K

820
lm2
9
lm/w2

DISCRETE. EFFICIENT. POWERFUL.

While being a discrete luminaire of only 103mm, IRIS Tilt packs a punch - capable of producing up to 8202 lumens at just 9W. In Iris Tilt carries colour rendering options from 90+ CRI to a highly respectable 97+ CRI for more true to life colours and a beautiful ambiance. Iris Tilt utilizes the highest quality LED technology which allows for a lifespan over 60,000 hours at L703 and comes packaged with a full 10 year warranty4.

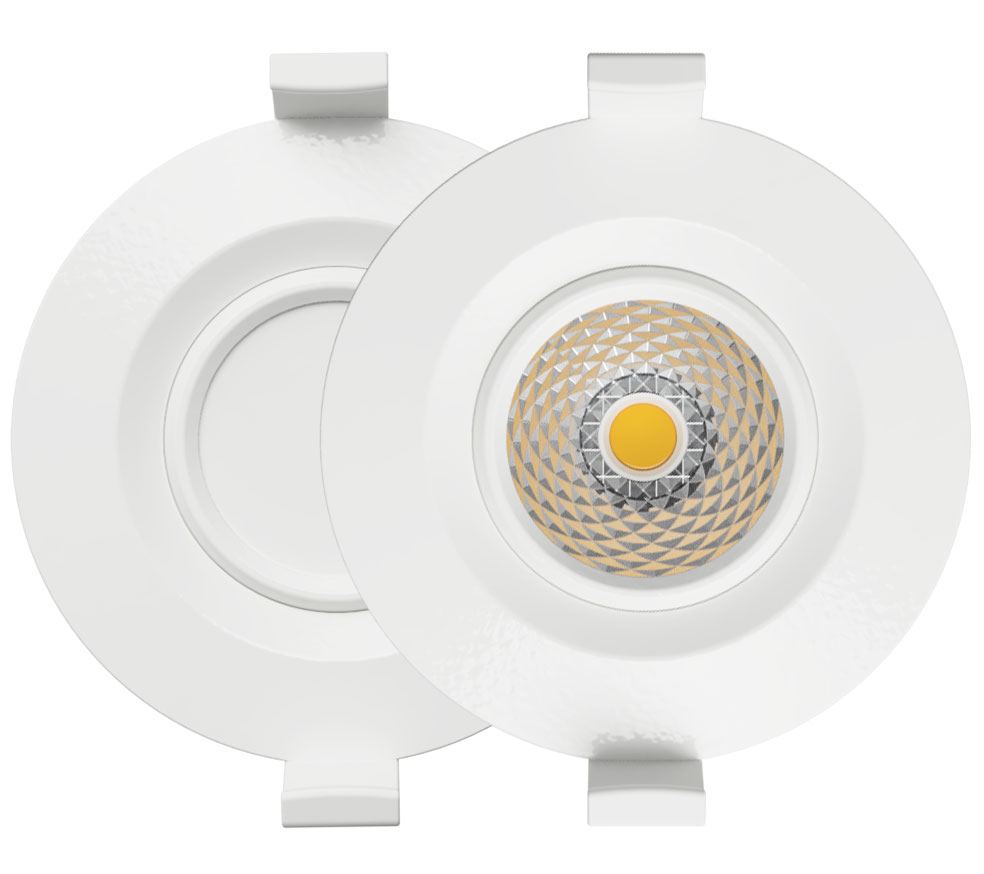

OPTICS

LENS OPTIONS

Iris 2 has 2 different lens options and four optical beam angle options. These are 20° , 40°, 60° and wide beam angles and either an optical grade transparent lens or a frosted PMMA lens.

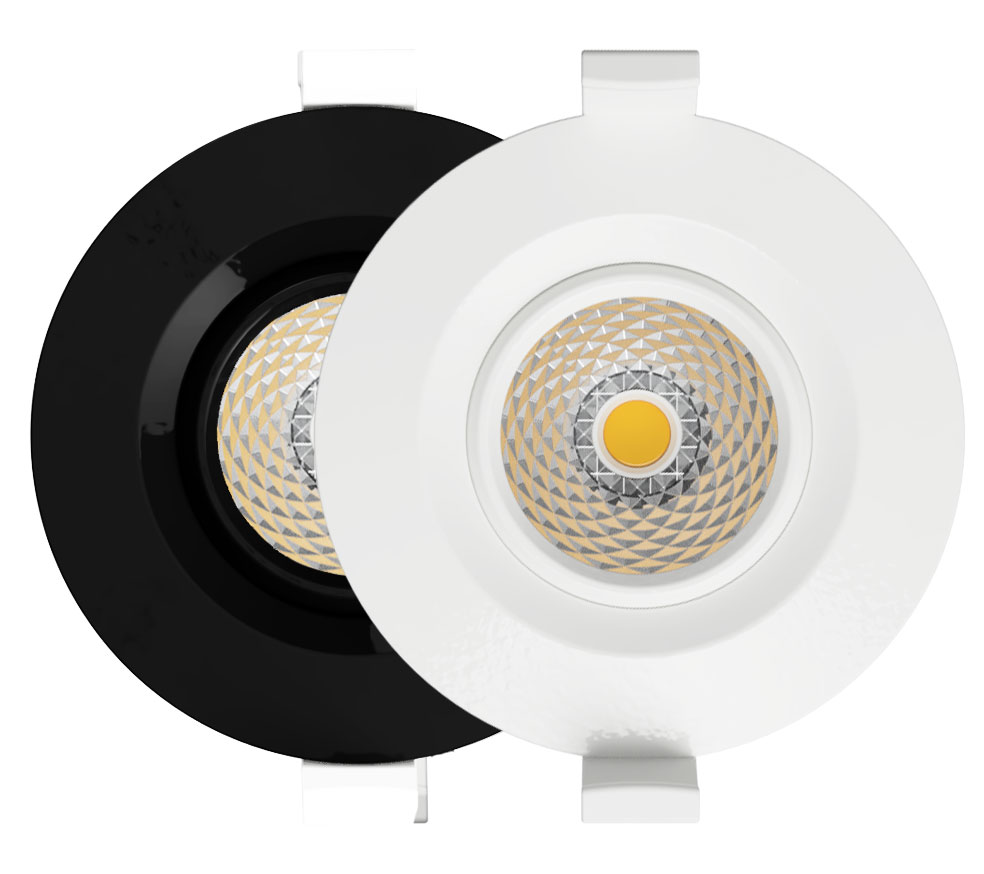

TRIMS

TRIM OPTIONS

Iris Tilt has two trim colour options to choose from. Black and matte white. Our black is matte black and is anti-reflective to reduce glare.  Our White trim is powder coated using a special formulation, co-developed by Visionary that is extremely durable and designed for most popular ceiling paints used in New Zealand.

FULL FEATURES

Fully Dimmable

Compatible with over 90% of New Zealand wall dimmer systems and most smart home electronics5.

Retrofit Capable

Suitable as an update for many tilt halogen downlights with cutouts between 83-97mm and trims up to 103mm.

10 Year Warranty

Full 10 Year warranty4 on both the lamp and the included LED driver for peace of mind. *7-year commercial.

Coverable LED driver

The attached Phoenix 2 LED driver is fully insulation coverable with approved insulation types.

Precise Colour Control

Includes Visionary's proprietary CCT binning technology 'Tru-light' to ensure consistent colour.

Insulation Coverable

Fully IC-F rated for use under all NZ approved insulation types including Pink Batts and Earthwool.

97+ Ultimute CRI Option

Available with superior colour rendering with options measured to be 97+ CRI6 for premium quality light colour rendering.

Fully Air Tight Design

Designed with a fully sealed front lens to ensure no air movement from room-space to ceiling cavity.

IP65 Water/Dust Resistant

Suitable for use in bathrooms +  kitchens and indoor humid environments as well as under soffits.

Zero Clearance Rated

SCB & HCB = Zero meaning that the product can abut combustible building elements safely.

Premium Trims

A custom formulated trim finish to be highly durable. The trim colours are designed to match common design elements.

Long Life 60,000+hrs

Premium quality components and thermal design help ensure a long product lifespan3.

IN THE BOX

Box Contents:
1X IRIS Tilt Downlight
1X Phoenix 2 LED Driver (Dimmable)
1x Connect Cable (Pre-wired)

Lamp Dimensions:
Height: 44mm
Width: 103mm
Cutout: 83-97mm

DOWNLOAD BROCHUREDOWNLOAD MANUAL
